Related products

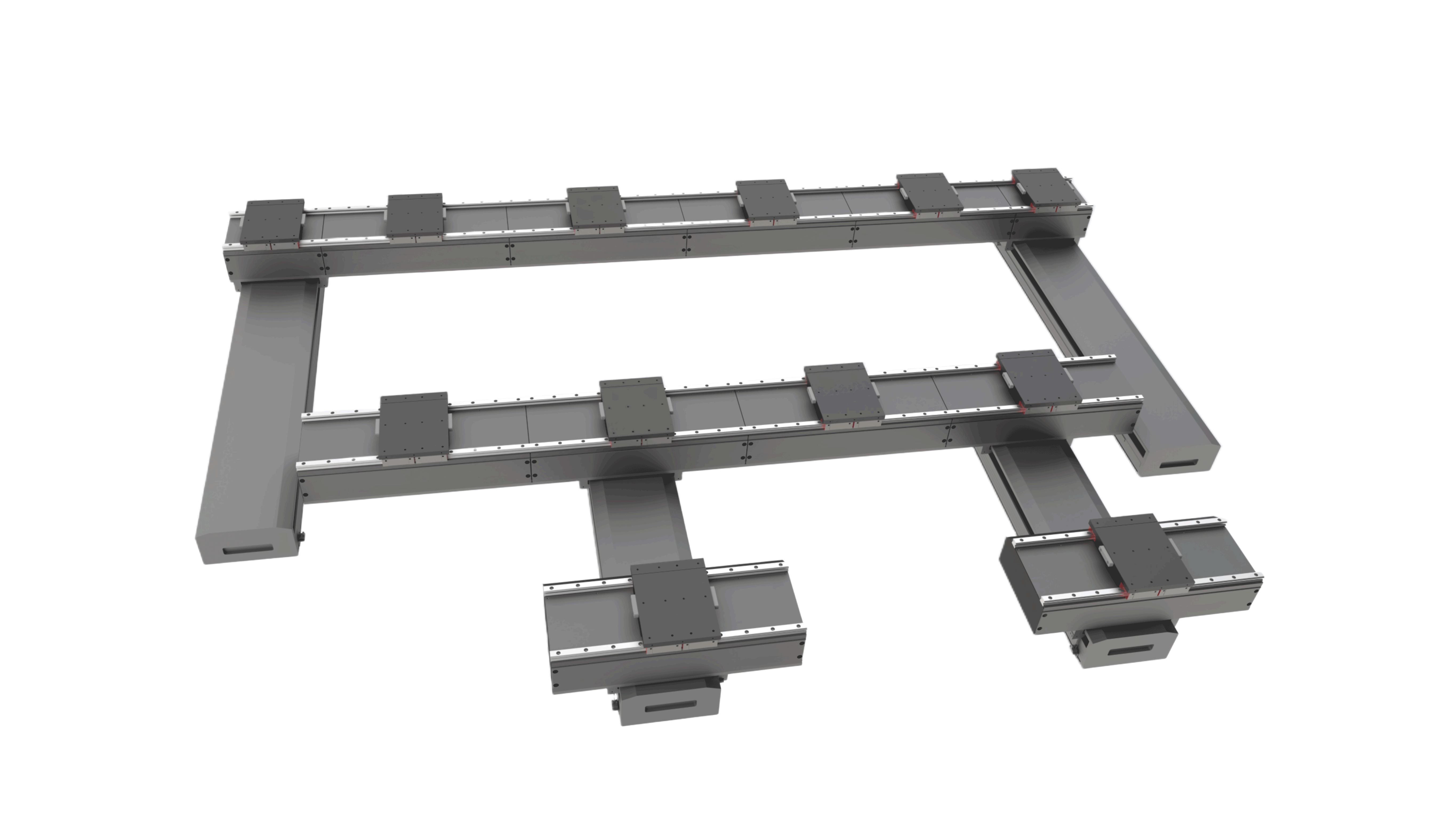

Complex branch road ferry line
Supports dynamic tracking of sub-ids, can achieve load ferryover return, adopts modular design, has a simple installation method, and is suitable for medium and high load scenarios. In addition, it can be integrated with traditional conveying forms, and the overall cost is low.
More

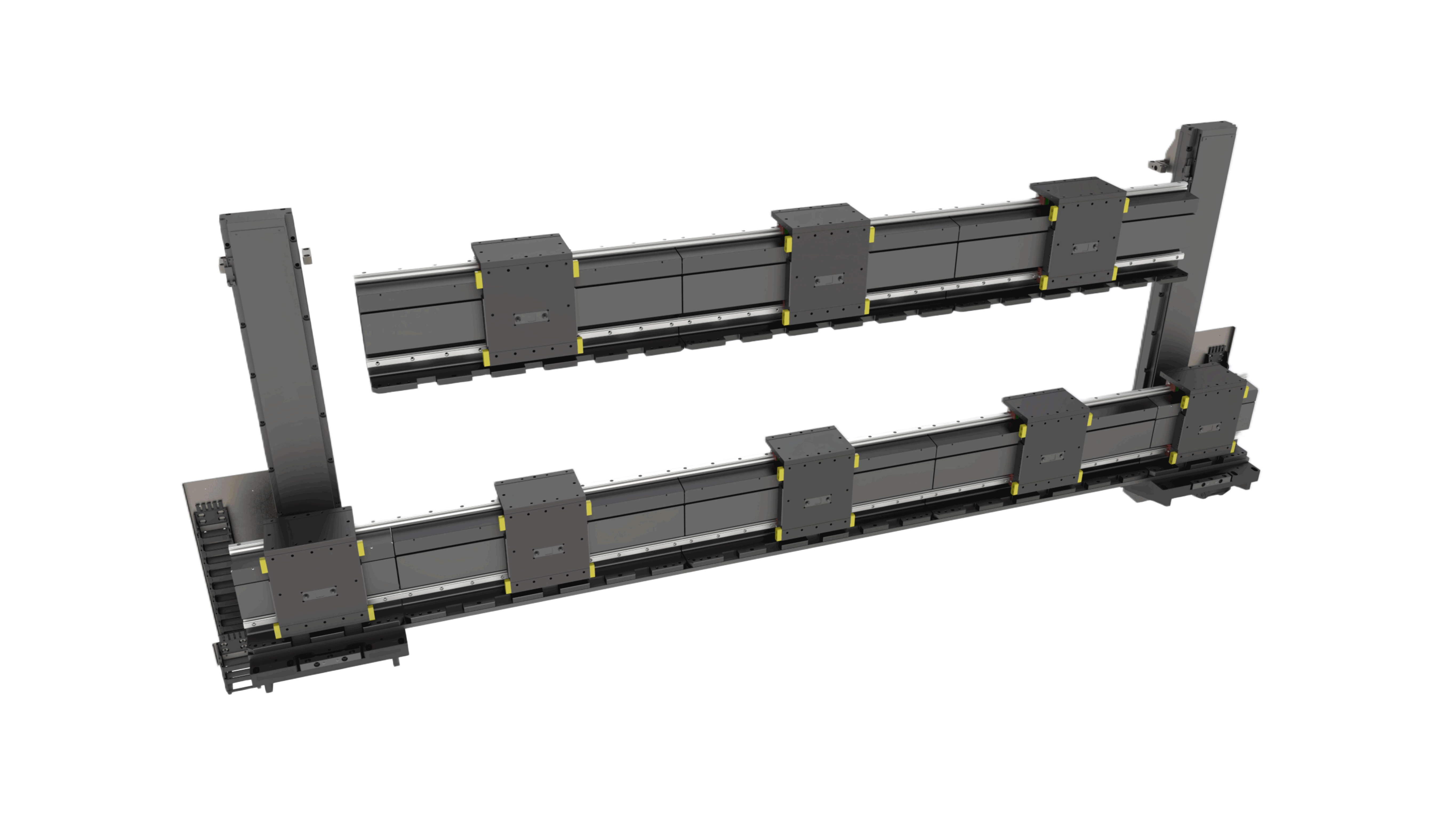

Vertical ferry line
Supports dynamic tracking of sub-ids, can achieve load ferryover return, adopts modular design, has a simple installation method, and is suitable for medium and high load scenarios. In addition, it can be integrated with traditional conveying forms, and the overall cost is low.
More

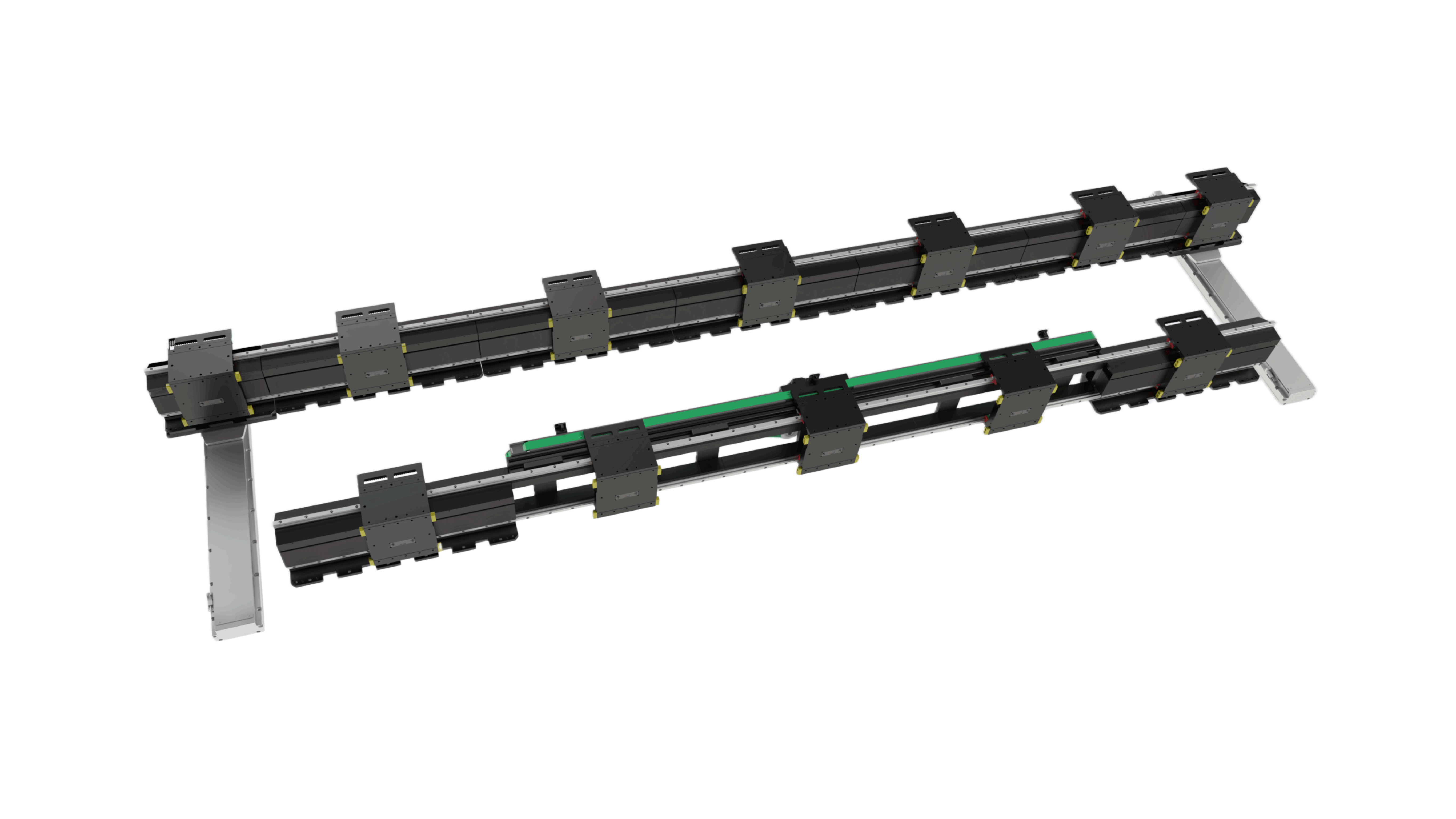

Belt hybrid ferry line
Supports dynamic tracking of sub-ids, can achieve load ferryover return, adopts modular design, has a simple installation method, and is suitable for medium and high load scenarios. In addition, it can be integrated with traditional conveying forms, and the overall cost is low.
More

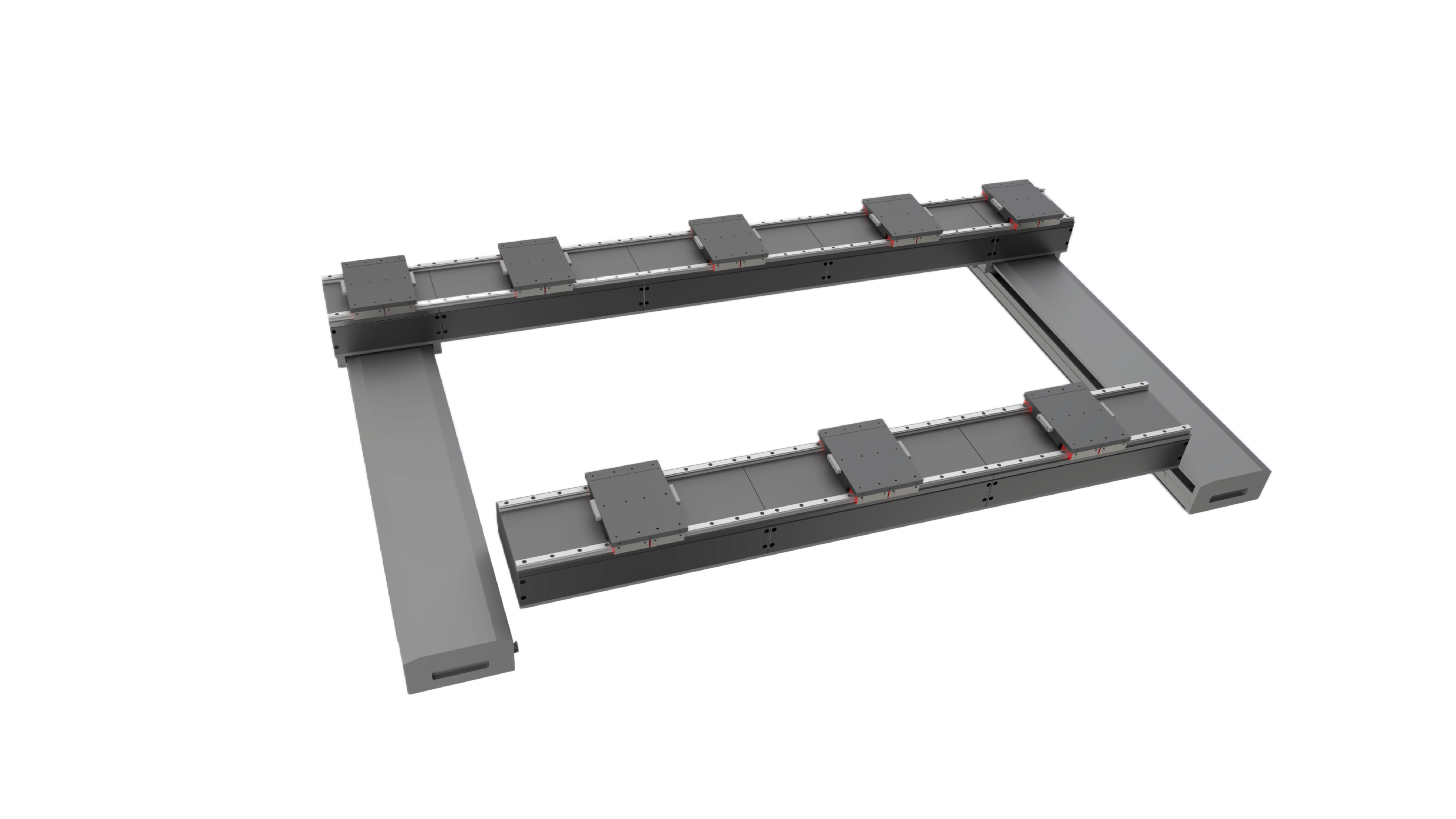

Horizontal ferry line
Supports dynamic tracking of sub-ids, can achieve load ferryover return, adopts modular design, has a simple installation method, and is suitable for medium and high load scenarios. In addition, it can be integrated with traditional conveying forms, and the overall cost is low.
More
Basic parameters
Module structureVertical double-trackHorizontal double-track
Module length240/288/480/576 mm
Maximum thrust415 N650 N
Continuous thrust210 N328 N
Maximum load30 Kg40 Kg
Maximum speed2.5 m/s
Maximum acceleration2 g
Minimum center distance
of the mover		245/255/310mm
Repeat positioning accuracy±0.02 mm
Location detectionAbsolute value position feedback
Communication interfaceEtherCAT & Ethernet
Controller/DriverXiCS-CH/ XiCS-DX
Controller power supply24VDC
Driver power supply55VDC
Product specifications
Mover
XiCS-DM-LV-SDL480576-M5M6-P30
Stator module
XiCS-SM-LV-SDL240-M-P30
Stator module
XiCS-SM-LV-SDL288-M-P30
Stator module
XiCS-SM-LV-SDL480-M-P30
Stator module
XiCS-SM-LV-SDL576-M-P30
Mover
XiCS-DM-LH-SDL480576-M5M6-P40
Stator module
XiCS-SM-LH-SDL240-M-P40
Stator module
XiCS-SM-LH-SDL288-M-P40
Stator module
XiCS-SM-LH-SDL480-M-P40
Stator module
XiCS-SM-LH-SDL576-M-P40
Download PDF
Contact us for more product information!
